Weaver 2 Ton WA-72B Long Frame Service Jack
Weaver WA-72B Two (2) Ton Long Frame Hydraulic Service Jack

How Can I Identify My Jack?

Using the following Dimension Chart, - Compare Features and Measurements

MODEL	CAP. (tons)	FRONT WHEELS	SADDLE STYLE AND SIZE	FRAME LENGTH	JACK WEIGHT
WA-72B	2	Two - 4" Diameter	Triangular or Round 5"' to 6"	51"	136 lbs
WA-73B	4	Two - 5" Diameter	Triangular or Round 5" to 6"	58"	212 lbs
WA-75B	10	Two - 7" Diameter	Round 9"	66"	356 lbs
WA-85	20	Three- 7" Diameter	Square 7"	69"	531 lbs

Weaver Jack Front Wheel Assembly

Front Replacement Wheels

MODEL	CAP. (tons)	FRONT WHEEL IDENTIFICATION	WHEEL PART NUMBER	BEARING PART NUMBER
WA-72B	2	STEEL 4-1/4" Diameter X 1-3/4" Wide	M-2271	S-23194
WA-72B	2	NEOPRENE 4-1/4" Diameter X 1-3/4" Wide	CALL	CALL
WA-73B	4	STEEL 5" Diameter X 2-1/4" Wide	M-840	S-22795
WA-73B	4	NEOPRENE 5" Diameter X 2-1/4" Wide	CALL	CALL
WA-75B	10	STEEL 7-5/8" Diameter X 3-1/2"	AS-12588	S-11103
WA-85	20	STEEL 7-5/8" Diameter X 3-1/2"	Outer AS-12588 Center AS-16037	S-11103

Weaver Jack Caster Assembly

Rear Replacement Casters

How the Caster Bracket attaches to the Frame is the
Key Identifier - It will either be Bolted or Welded
NOTE: Bolts Are only visible from underneath the Jack.

MODEL	CAP. (tons)	REAR CASTER BRACKET IDENTIFICATION	CASTER PART NUMBER
WA-72B	2	WELDED	S-22797
WA-72B	2	WELDED - NEOPRENE	CALL
WA-72B	2	BOLTED	AS-0723C
WA-73B	4	WELDED - NEOPRENE	CALL
WA-73B	4	WELDED	S-22797
WA-73B	4	BOLTED	AS-0723C
WA-75B	10	WELDED	S--24627
WA-75B	10	BOLTED	AS-0750C
WA-85	20	BOLTED	AS-0850C

Caster Types (Bolted or Welded Bracket) are Not Interchangeable

Casters using a Welded Bracket are One Piece

Casters using a Bolted Bracket have multiple parts, which be replaced individually

Rear Caster Assemblies Details

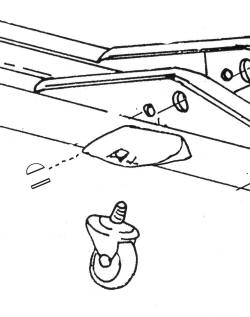

WA-72 B Two (2) Ton Jack	Welded Caster Bracket

S-22797 Caster (One Piece) for WA-72B with Caster Bracket Welded on. Optional Parts: S-6606 Caster Retainer with Roll Pin NOTE: Older Models where the top of the caster yoke pin inserts into the bracket from underneath and is retained by a side set screw also use the S-22797 Caster.

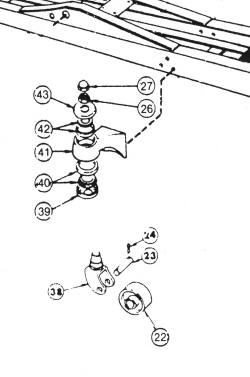

WA-72 Two (2) Ton Jack	Bolted Caster Bracket
AS-0723C Caster Assembly for WA-72 (Old Style) Only for those with Bolted on Caster Bracket (not welded) Complete Caster Assembly consists of the following: AS-23617 Yoke Wheel Assembly * S-11758 Top Swivel Bearing S-11929 Top Swivel Washer S-11758 Bottom Swivel Bearing S-11930 Bottom Swivel Washer S-3310 Jam Nut Order Qty 2 each to replace Acorn Nut Dust Cover - Not available *AS-23617 Yoke Wheel Assembly Consists of M-322 Wheel M-1303 Yoke S-764 Axle

WA-73B Four (4) Ton Jack	Welded Caster Bracket

S-22797 Caster (One Piece) for WA-73B with Caster Bracket Welded on Optional Parts: S-22770 Roll Pin S-8542 Acorn Cap NOTE: Older Models where the top of the caster yoke pin inserts into the bracket from underneath and is retained by a side set screw also use the S-22797 Caster.

WA-73 Four (4) Ton Jack	Bolted Caster Bracket
AS-0723C Caster Assembly for WA-73 (Old Style) Only for those with Bolted on Caster Bracket (not welded) Complete Caster Assembly consists of the following: AS-23617 Yoke Wheel Assembly * S-11758 Top Swivel Bearing S-11929 Top Swivel Washer S-11758 Bottom Swivel Bearing S-11930 Bottom Swivel Washer S-3310 Jam Nut Order Qty 2 each to replace Acorn Nut Dust Cover - Not available *AS-23617 Yoke Wheel Assembly Consists of M-322 Wheel M-1303 Yoke S-764 Axle

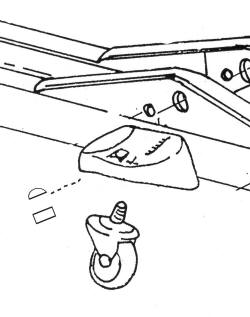

WA-75B Ten (10) Ton Jack	Welded Caster Bracket

S-24627 Caster (One Piece) for WA-75B with Caster Bracket Welded on Optional Parts: S-2232 Jam Nut S-6605 Acorn Nut

WA-75 Ten (10) Ton Jack	Bolted Caster Bracket
WA-75 Caster Assembly ( Bolted Style) AS-0750C Caster Assembly for WA-75 (Bolted Style) Only for those with Bolted on Caster Bracket (not welded) Complete Caster Assembly consists of the following: AS-24621 Yoke & Wheel Assembly* As-15814 Upper Bearing Assembly # As-15815 Lower Bearing Assembly # S-2232 Jam Nut S-6605 Acorn Nut S-15429 Retainer S-24650 Bearing Cup AS-24621 Yoke & Wheel Assembly Consists of: M-1152 Wheel AS-2030 Yoke S-711 Axle S-15398 Wheel Bearing S-293 Cotter # See Note below for very old models*

WA-85 Twenty (20) Ton Jack	Bolted Caster Bracket

WA-85 Caster (Double) Assembly ( Bolted Style) AS-0850C Caster Assembly for WA-85 (Bolted Style) Complete Caster Assembly consists of the following: QTY Each 1 ea AS-15994 Yoke & Wheel Assembly* 1 ea As-15814 Upper Bearing Assembly 1 ea As-15815 Lower Bearing Assembly 1 ea S-2232 Jam Nut 1 ea S-6605 Acorn Nut 1 ea S-15429 Retainer 1 ea S-24650 Bearing Cup *AS-15994 Yoke & Wheel Assembly Consists of: 1 ea AS-15957 Yoke Assembly 2 ea M-1152 Wheel 1 ea S-15971 Axle 2 ea S-15398 Wheel Bearing 1 ea S-293 Cotter

NOTE: IF YOU HAVE A VERY OLD WA-75 JACK


Very Old Style WA-75 Caster Bracket. The Current Yoke and Wheel Assembly will fit.	The outside opening is 1-3/4" The Current Bearings will Not fit.	Use 909602-Bo2 Bearing Set Obtain from your local bearing supplier.

The above style of caster bracket for the WA-75 Ten Ton Jack used a different bearing system. The current bearing parts will not fit this very old style caster. It can however, use the same Yoke & Wheel Assembly as the newer models. If your Jack looks like this, you can obtain the correct bearing from your local bearing vendor. The only part that will fit this Jack's caster is the AS-24621 Yoke & Wheel Assembly. This is because the older style is a ball bearing and the newer style is a taper bearing. The current bearing, bearing cup and retainer will not fit --Reuse your existing parts.
