Cylinders for Weaver Jacks

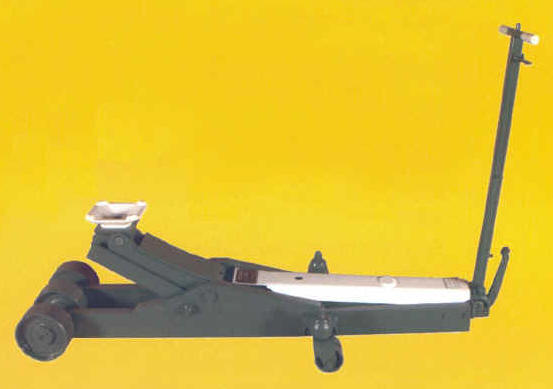

Weaver 20 Ton WA-85 Long Chassis Service Jack
Weaver WA-85 Twenty (20) Ton Long Chassis Hydraulic Service Jack

How Can I Identify My Jack?

Using the following Dimension Chart, - Compare Features and Measurements

MODEL	CAP. (tons)	FRONT WHEELS	SADDLE STYLE AND SIZE	FRAME LENGTH	JACK WEIGHT
WA-72B	2	Two - 4" Diameter	Triangular or Round 5"' to 6"	51"	136 lbs
WA-73B	4	Two - 5" Diameter	Triangular or Round 5" to 6"	58"	212 lbs
WA-75B	10	Two - 7" Diameter	Round 9"	66"	356 lbs
WA-85	20	Three- 7" Diameter	Square 7"	69"	531 lbs

How Can I Identify My Jack Cylinder?

Using the following Description Chart, - Determine Whether You Have an A or B Model

MODEL	CAP. TONS	CYLINDER DESCRIPTION	REPLACEMENT CYLINDER PART # *

WA-72A	2	Head of cylinder is held down by TWO Cotter Keys	Not Available
WA-72B	2	Head of cylinder is held down by Metal Tabs	AS-16145A
WA-73A	4	Head of cylinder is held down by TWO Cotter Keys	Not Available
WA-73B	4	Head of cylinder is held down by Metal Tabs	AS-23347A
WA-75A	10	Head of cylinder is held down by A Large Pin Through The Frame	Not Available
WA-75B	10	Head of cylinder is held down by TWO Bolts Inside Frame	AS-24691A
WA-85	20	Head of cylinder is held down by TWO Bolts Inside Frame	AS-15961

* Complete Cylinder Assemblies Consist of: Cylinder, Pump & Release Assemblies

If Your Jack Looks like a Weaver Jack, but it has a different Manufacturers Label on it -
Some Manufacturers Private Label Weaver Jacks for sale under their Name -
Contact Us - We can assist you in Identifying your Jack.

If a Part number is not listed, then the cylinder is either discontinued or a Special Order. Call for details

WA-72B Two (2) Ton Jack

AS-16145A Complete Cylinder Assembly

AS-16145A consists of the following:

AS-15206A Cylinder
AS-7443A Pump Assembly
S-21049A Release Valve Assembly
S-21052 Valve Packing Housing Assembly
S-5176 Brass Release Packing Nut
Plus all internal parts (piston, cups, seals etc)

WA-73B Four (4) Ton Jack

AS-23347A Complete Cylinder Assembly

AS-23347A consists of the following:

AS-15130A Cylinder
AS-24498 Pump Assembly
S-21050 Release Valve Assembly
AS-21052 Valve Packing Housing Assembly
S-5176 Brass Release Packing Nut
Plus all internal parts (piston, cups, seals etc)

WA-75B Ten (10) Ton Jack

AS-24691A Complete Cylinder Assembly

AS-24691A consists of the following:

AS-24485A Cylinder
AS-24498 Pump Assembly
S-21050 Release Valve Assembly
AS-21052 Valve Packing Housing Assembly
S-5176 Brass Release Packing Nut
Plus all internal parts (piston, cups, seals etc)

WA-85 Ten (10) Ton Jack

AS-15961 Complete Cylinder Assembly

AS-15961 consists of the following:

AS-15962 Cylinder
AS-24498 Pump Assembly
S-21050 Release Valve Assembly
AS-21052 Valve Packing Housing Assembly
S-5176 Brass Release Packing Nut
Plus all internal parts (piston, cups, seals etc)
